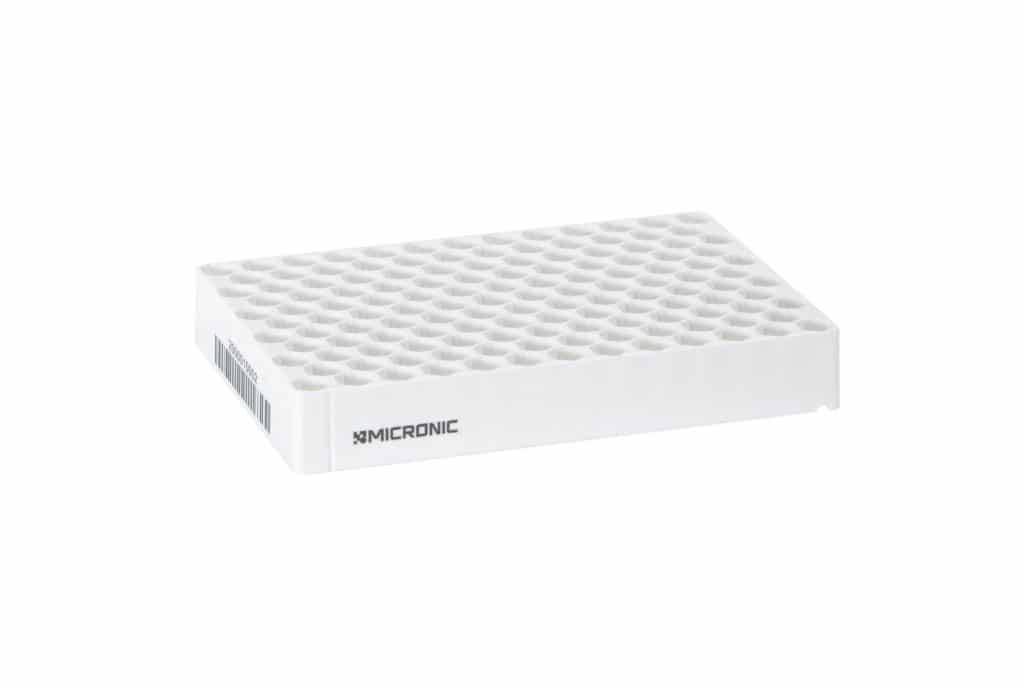

Micronic 138-2 HD Rack

SKU: MP51420

You need to log-in to order

Optimize your automated sample storage

Store up to 43% more samples!

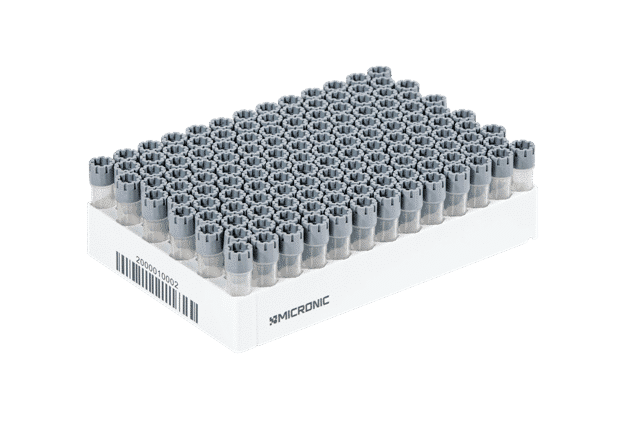

The Micronic 138-2 HD Rack is developed for 138 individual 0.75ml internally threaded or externally threaded (hybrid) tubes, or for 0.80ml externally threaded tubes. With its honeycomb design, the high density rack increases the number of samples that can be stored up to 43% compared to a standard rack in the ANSI/SLAS footprint. Absolute traceability and reproducibility on the racks is ensured through a unique laser etched 1D barcode on the side of the racks. The open bottom design of the storage racks facilitates quick defrosting of samples and permits tubes to be manipulated by robotic systems avoiding time-consuming procedures.

The Micronic HD Rack is made to store more samples in an ANSI/SLAS format rack, and is especially designed to be compatible with automated sample storage systems. The rack side walls are closed for easy gripping with most robotic arms.

Product features

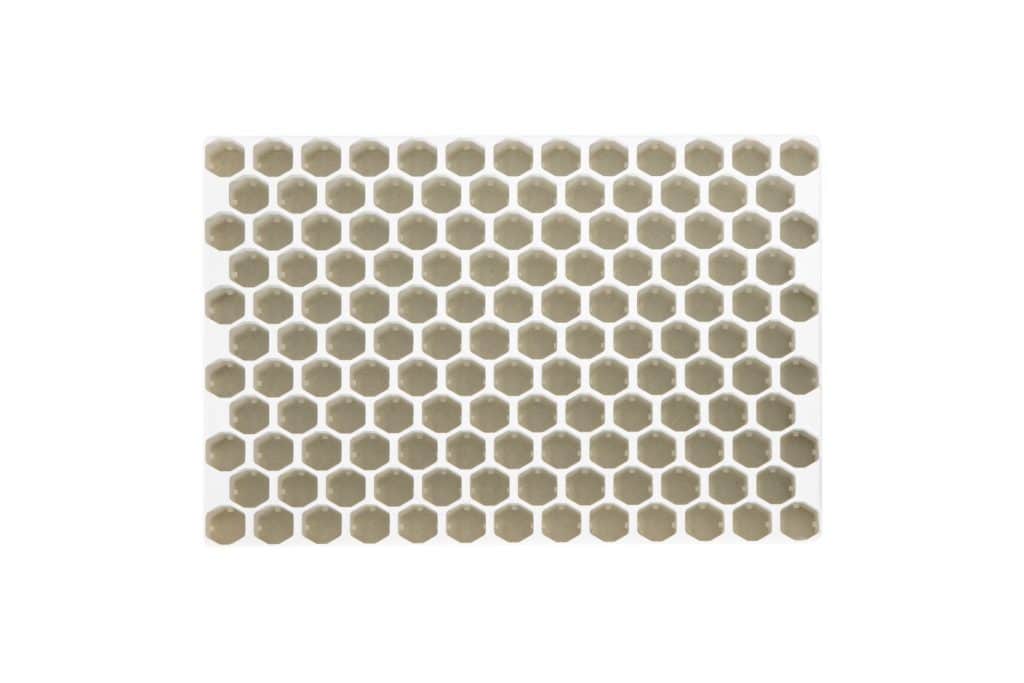

Honeycomb design

With its honeycomb design, the high density rack increases the number of samples that can be stored up to 43% compared to a standard rack in the ANSI/SLAS footprint.

Tube Compatibility

Compatible with the leading sample storage automation systems (-20°C, -80°C and lower temperatures).

Ultra-low temperatures

Made from Polycarbonate which has excellent properties for ultra-low temperatures.

RNase/DNase/Pyrogens

Free of any detectable RNase or DNase contamination and the endotoxin level of produced and packaged labware is limited to an acceptable minimum (< 0.01 EU/ml).

  • Material Polycarbonate
  • Rack height 20.2mm
  • Rack length 127.8mm
  • Rack width 85.5mm
  • Chemical resistance ++/+
  • Temperature range Vapor phase LN2 to +100ºC

Satisfied customers

That's why we do it

Need more information?

Don't hesitate to contact us.

Want to learn more about the Micronic 138-2 HD Rack? Eager to request a free sample? Contact us today with your questions.

Request more info - Labware

  • Hidden
  • This field is for validation purposes and should be left unchanged.

Product downloads

View the accompanying brochures

Related products

These products are also often chosen

0.75ml-External-Thread-Hybrid-Tubes

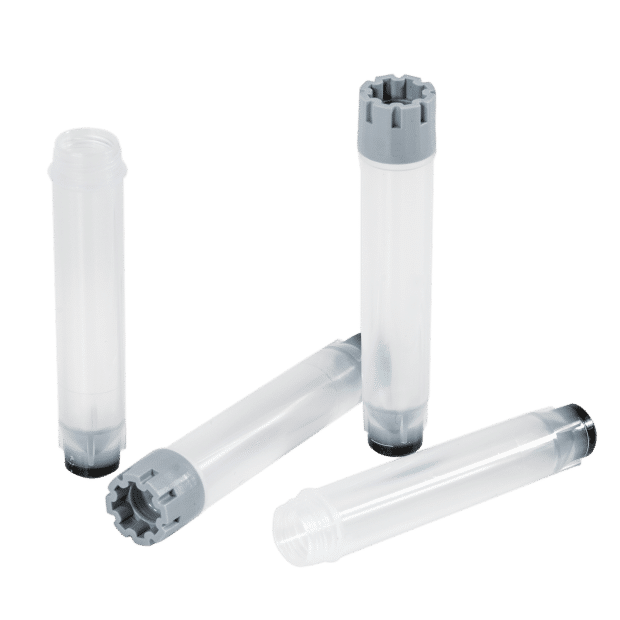

0.75ml External Thread Hybrid Tubes
